Configuring supernode2 CPEs
(line of sight to 40.713991, -73.929049 )
For connecting to supernode 1 see here
Ubiquiti sector clients-
A new Ubiquiti device has a default IP address 192.168.1.20 and name/pass ubnt, ubnt

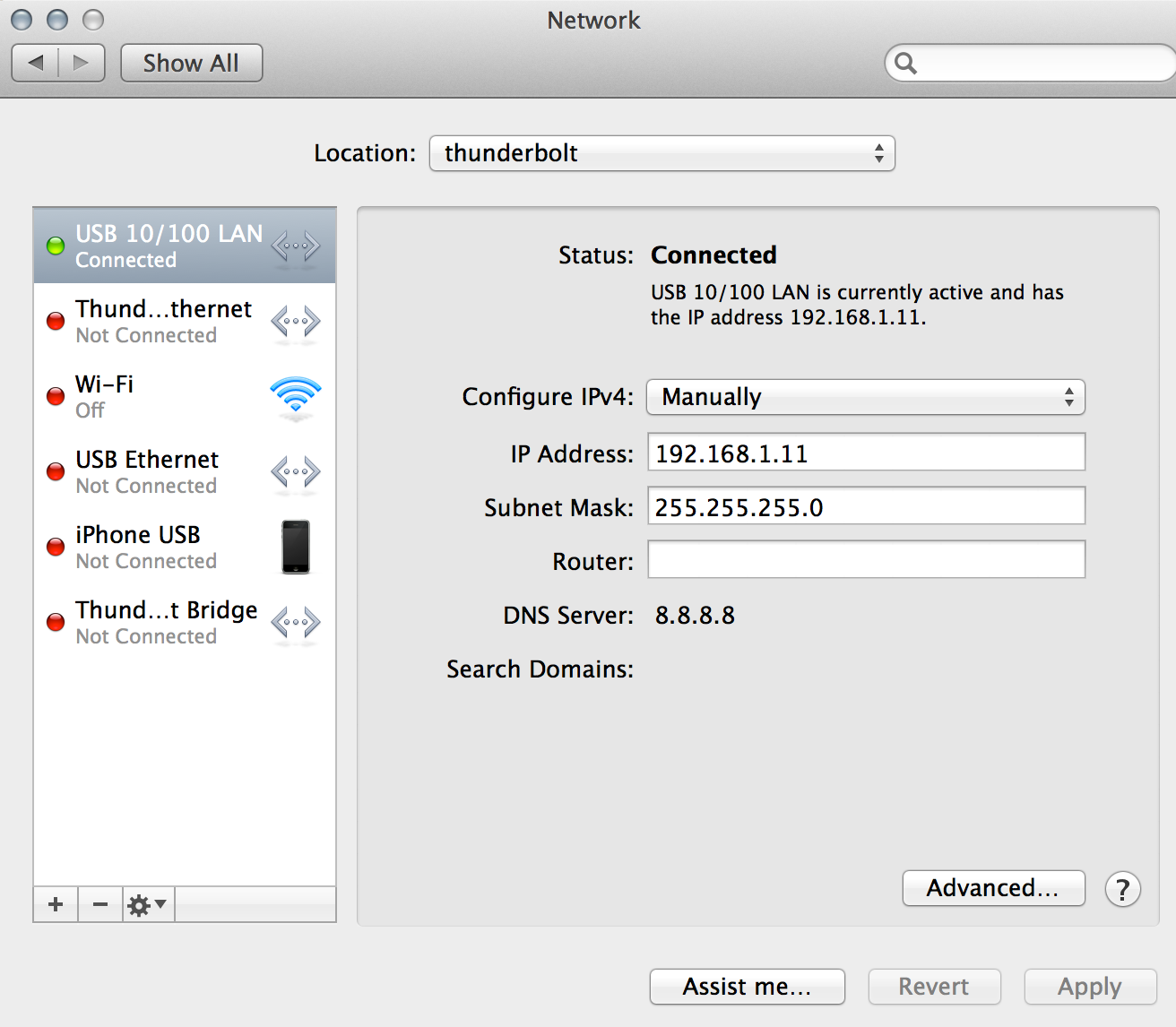

Connect to the LiteBeamAC or NanoBeamAC via ethernet. Make sure you are on the same subnet by manually setting your network preferences, e.g. 192.168.1.11, Mask: 255.255.255.0
You will get an ssh warning “Your connection is not…”, ignore and click “advanced” to proceed. (This is because the interface uses https)
Flash with latest firmware
Go to System:Configuration:Reset to factory defaults and click Reset
Download latest version of AirMaxAC for the particular hardware
System:Upload Firmware
Reset to factory again
Change the pass
Click the “Settings” button (gear icon) on the left to give you-
Wireless | Network | Services | System

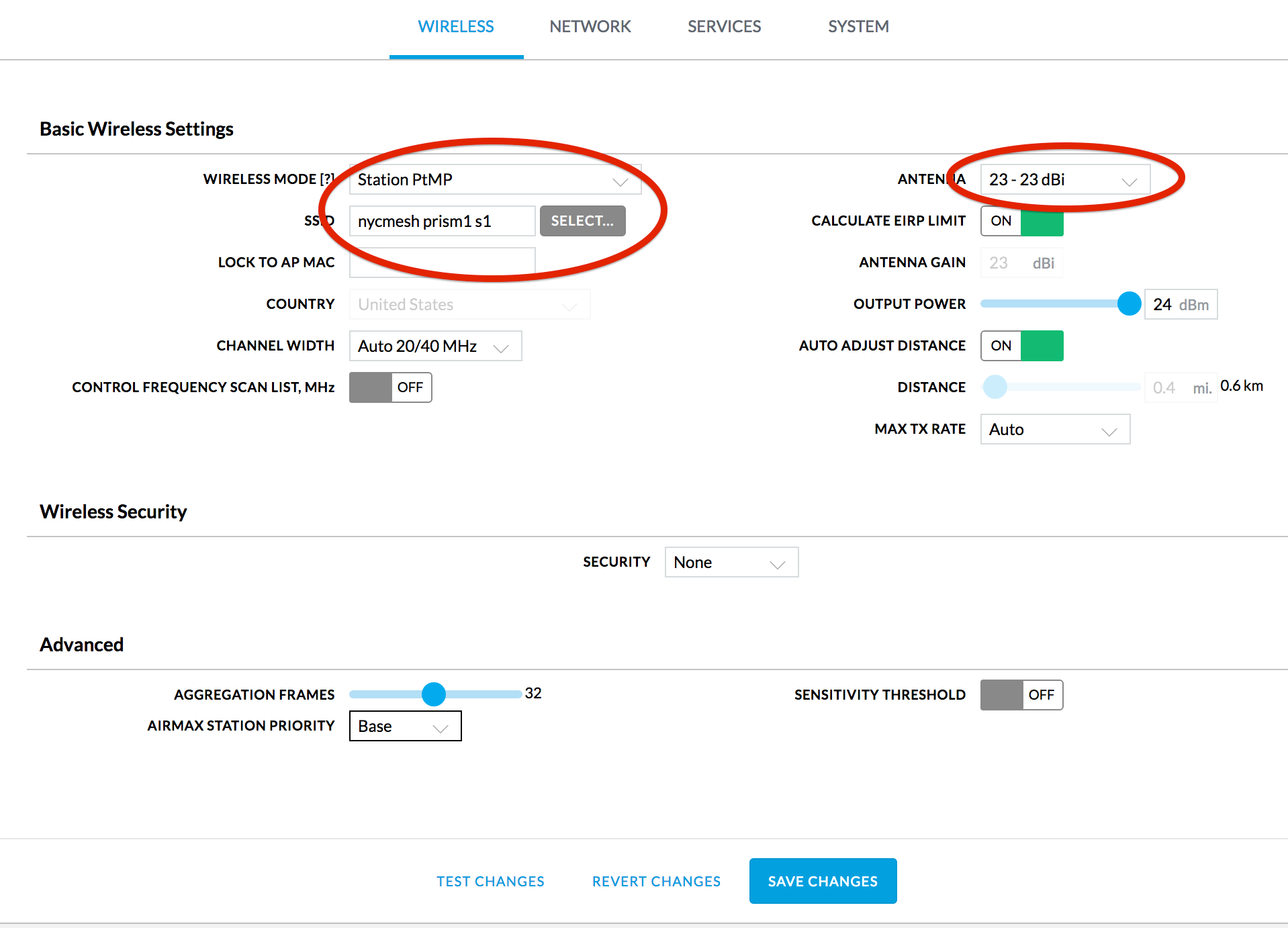

- Station PtMP
- SSID: nycmesh-english-kills-east OR
nycmesh-english-kills-west, see pairing below - WPA2 PSK: nycmeshnet
- Antenna 23 -23dbi

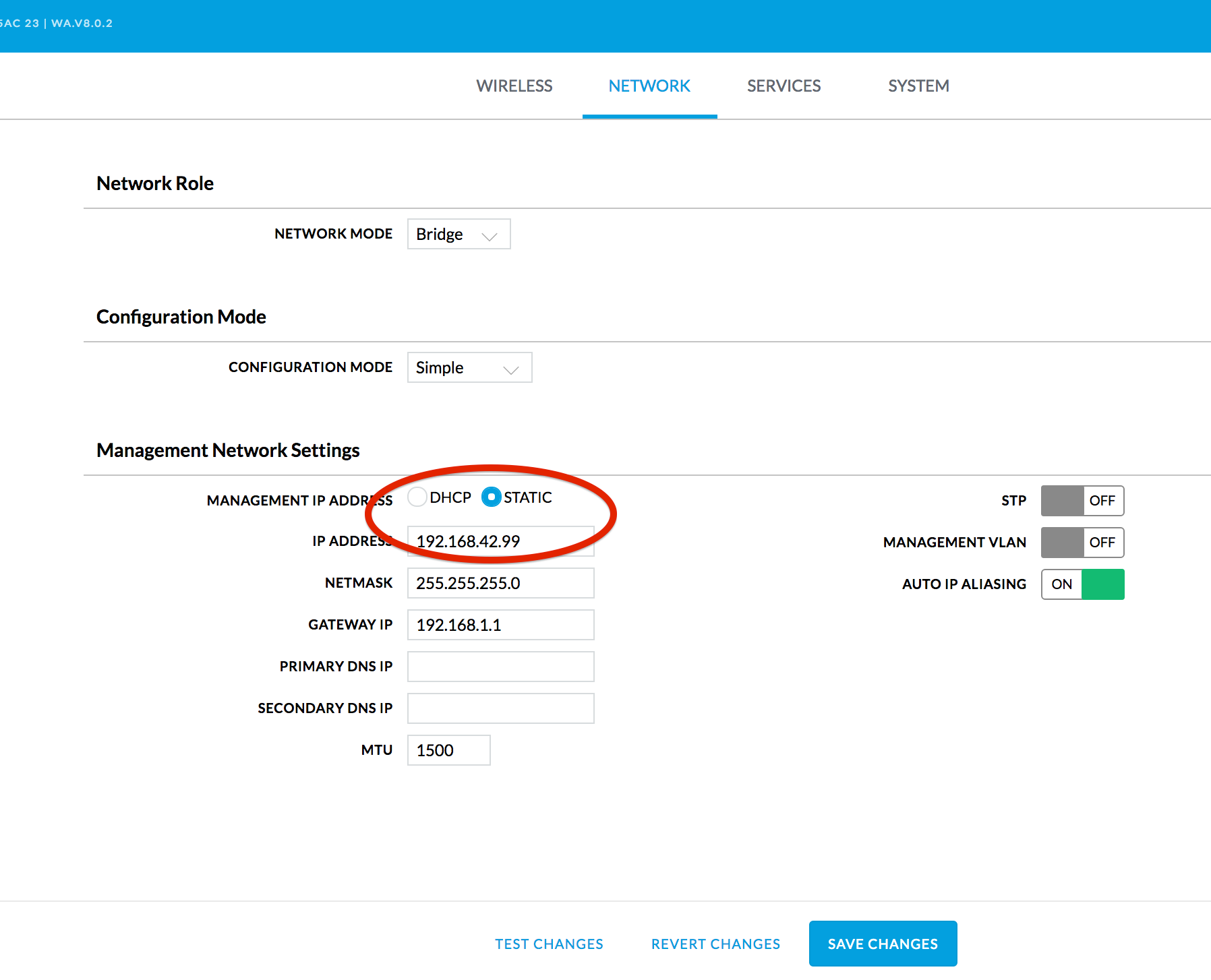

Network settings
(leave as default)

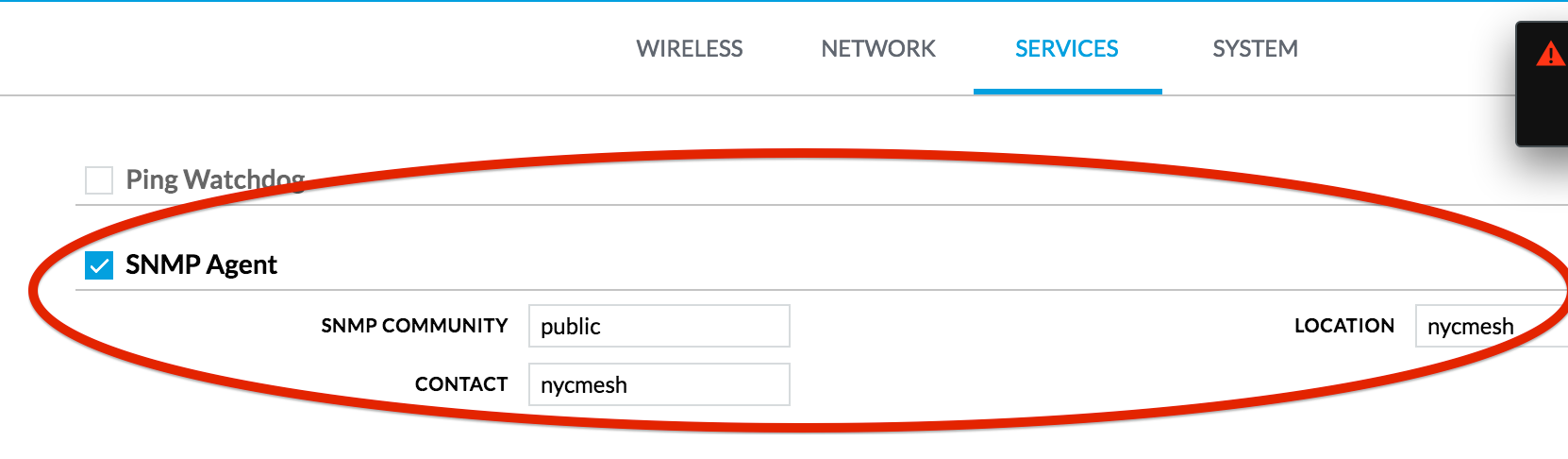

- [x]SNMP Agent
- community: public location: nycmesh
- contact: nycmesh

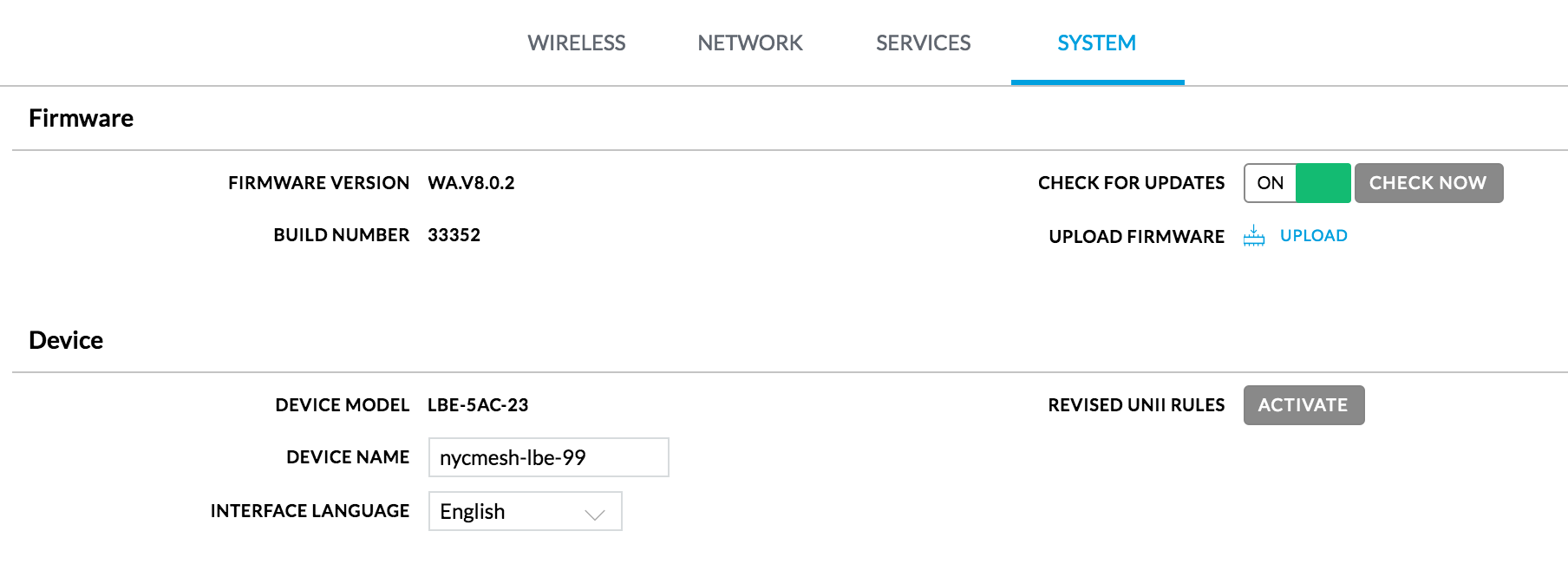

- Device name: nycmesh-lbe-nn (lbe is LiteBeam, nbe is NanoBeam, nn is replaced with the install number)
Pairing with Supernode2
In the “Wireless” settings click “Select” and choose the strongest “nycmesh-english-kills” signal. The strongest signal has the lower number. -80db would be very weak, -50db would be very strong.
Antenna Alignment
There is a visual level built into the antenna make sure the bubble is in the middle.
There is a “tools” menu in the upper right of the interface. Click this and select Antenna alignment. First align the antenna by pointing it directly at the supernode. Now move it slightly up or down to get a stronger signal. Once you have the vertical alignment, do the same by moving the antenna horizontally. The sound option is very helpful for this.
Download test
To get internet from the CPE you need to set your laptop’s network configuration to IPv4:using DHCP (“automatic” setting on some machines). If the device is paired with the supernode it will automatically get an IP address in our range- 199.x.x.x
A good speed is over 50Mps. We have been getting 60 to 120Mbps so far. If the speed is under 20Mbps explain to the member the limitations (Netflix standard streaming is 5Mbps). It is not good to install if connection is less than 10Mbps as it won’t reliably play video.
You must have a gigabit adapter to get over 100Mbps. It is possible to get 200Mbps if you are close with good line of sight. If you don’t have a gigabit adapter the maximum speed is going to be under 95Mbps.
