Members can buy their own cpe on Amazon etc. We can swap it with a preconfigured one on site to save time.
Configuring supernode1 CPEs
Line of sight to 375 Pearl St. Manhattan
For connecting to supernode 2 see here
Ubiquiti Prism clients-
A new Ubiquiti device has a default IP address 192.168.1.20 and name/pass ubnt, ubnt

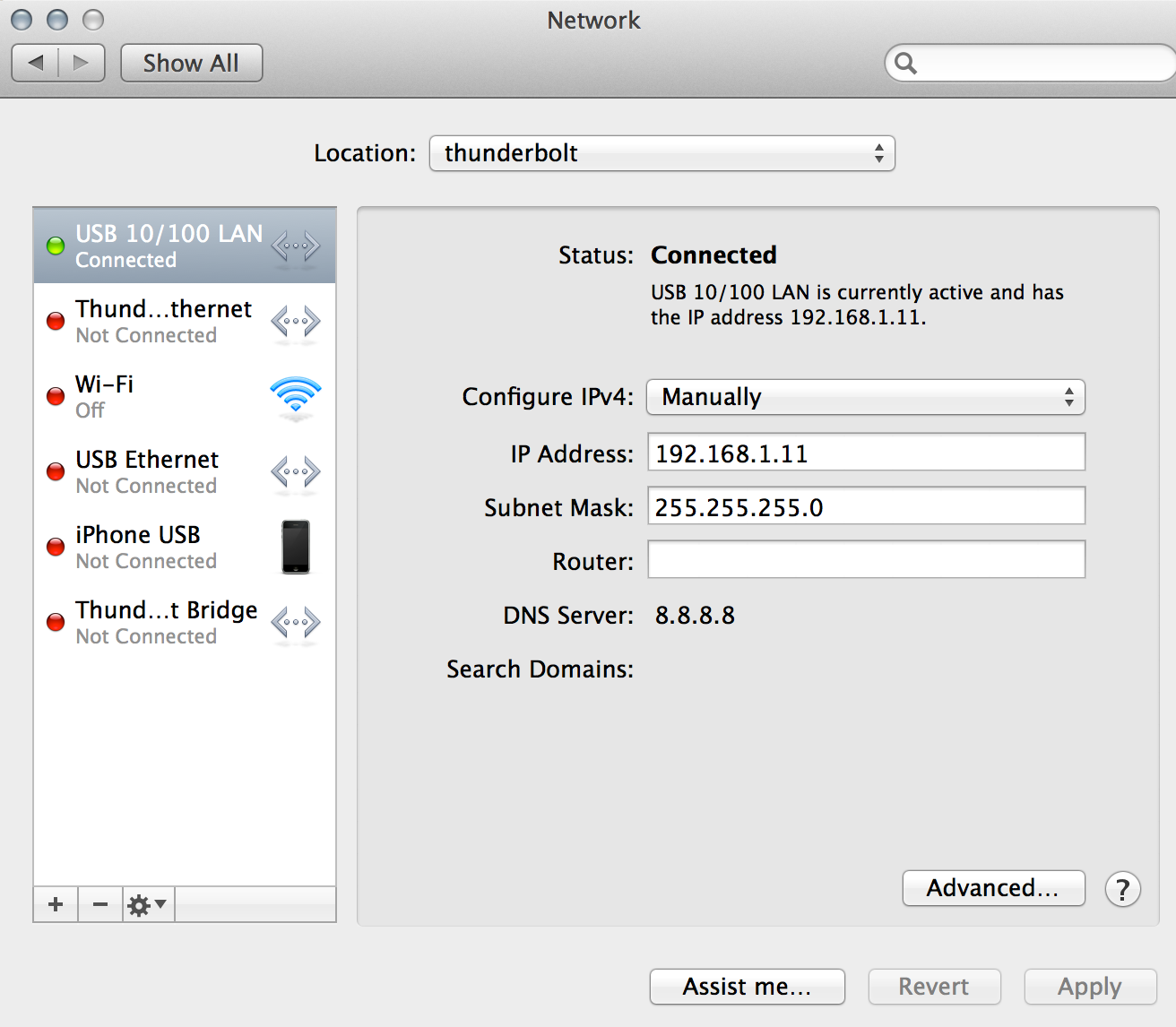

Connect to the LiteBeamAC or NanoBeamAC via ethernet. Make sure you are on the same subnet by manually setting your network preferences, e.g. 192.168.1.11, Mask: 255.255.255.0
You will get an ssh warning “Your connection is not…”, ignore and click “advanced” to proceed. (This is because the interface uses https)
Flash with latest firmware
Go to System:Configuration:Reset to factory defaults and click Reset
Download latest version of AirMaxAC for the particular hardware
System:Upload Firmware
Reset to factory again
Change the pass
Click the “Settings” button (gear icon) on the left to give you-
Wireless | Network | Services | System

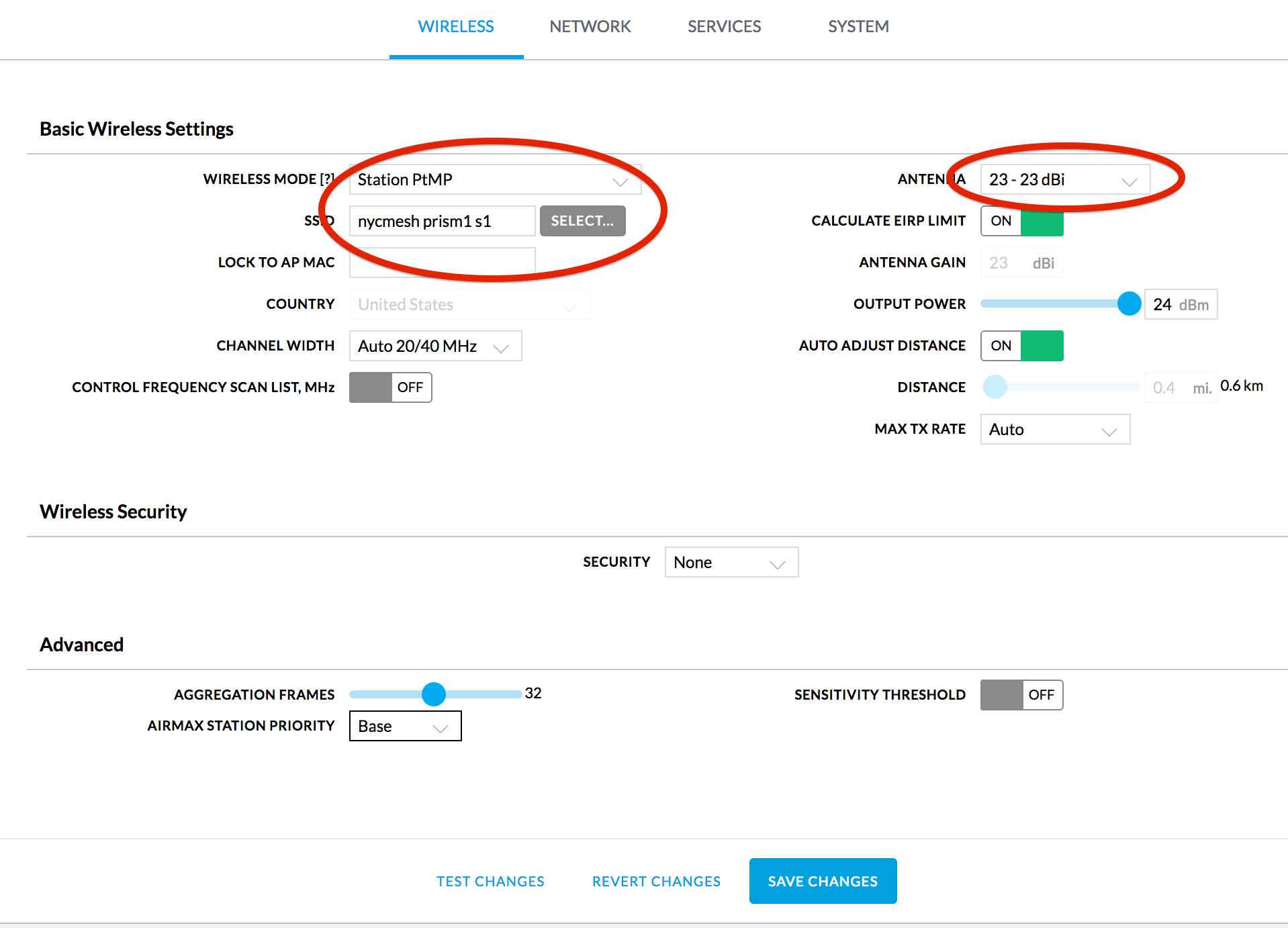

- Station PtMP
- SSID: nycmesh prism1 s2
- see “Pairing” below for selecting s1, s2 or s3
- Antenna 23 -23dbi

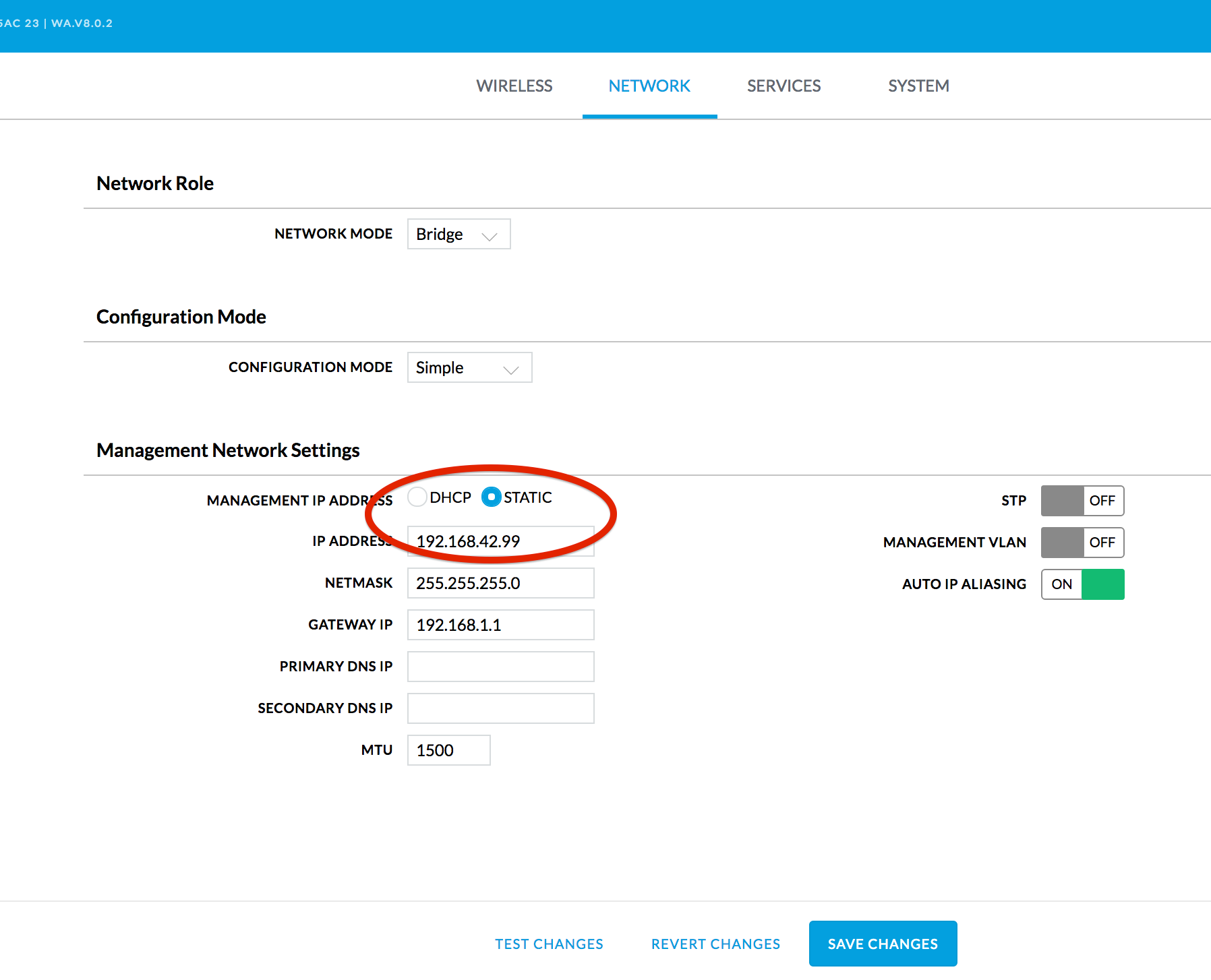

- Static
- IP 192.168.42.x
Ask us to assign this to you!
DEFAULT IP CANNOT BE USED! Ask us to assign you one before you connect!

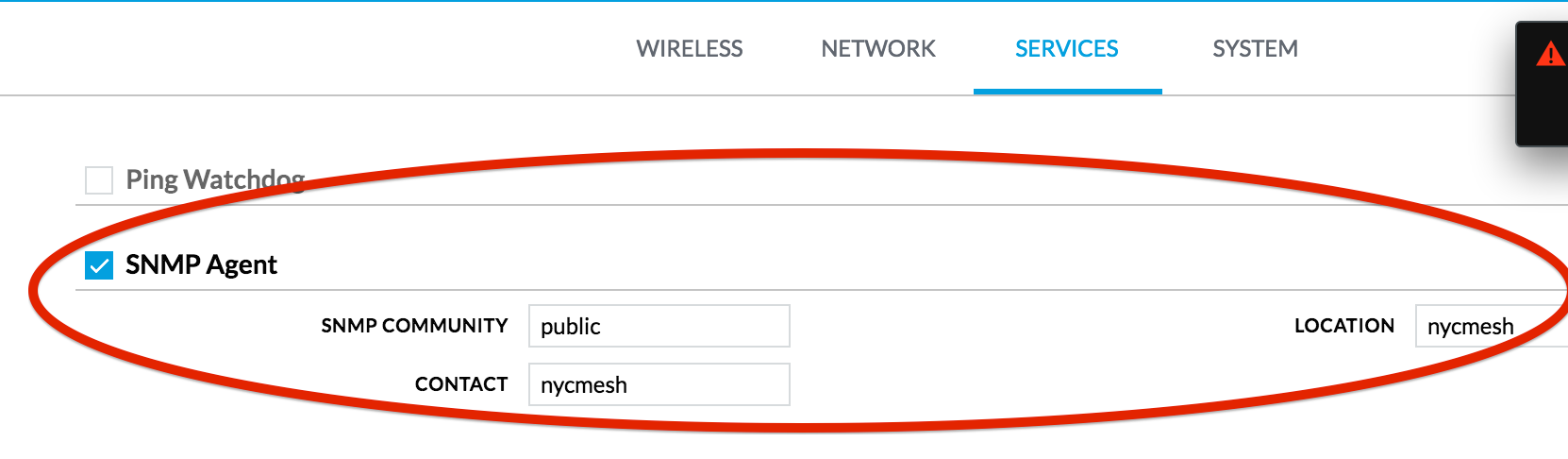

- [x]SNMP Agent
- community: public location: nycmesh
- contact: nycmesh

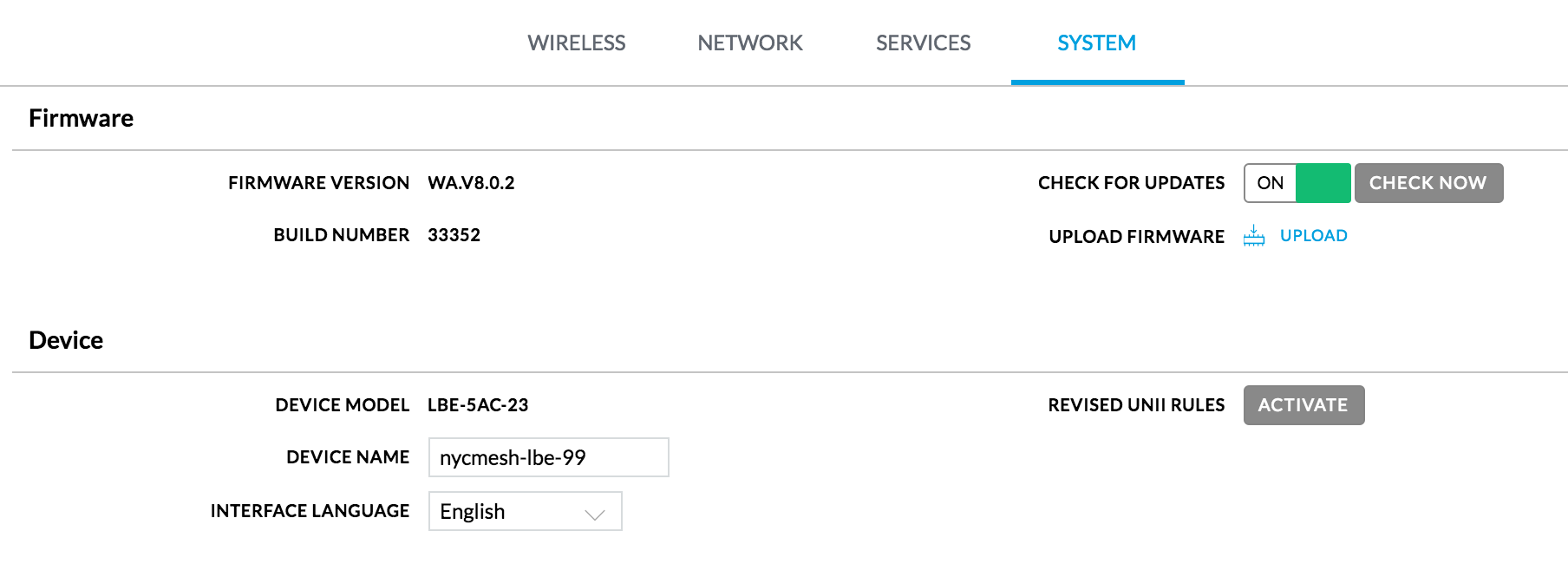

- Device name: nycmesh-lbe-nn (lbe is LiteBeam, nbe is NanoBeam, nn is replaced with the install number)
You can download this example LiteBeamAC config with the above configuration
Pairing with Supernode1
In the “Wireless” settings click “Select” and choose the strongest “nycmesh prism” signal. The strongest signal has the lower number. -80db would be very weak, -50db would be very strong.
Gen1 LiteBeams can only see s1 and s2 sectors, unless they are unlocked (giving them gen2 specs) Gen2 can see s2, s3 and prism2
Ask us for the unlock codes for Gen1
Prism1 has 3 radios. You need to select the strongest. s1 faces North, s2 and s3 face north east. East Village would probably be s1 and LES and Alphabet City would probably be “s2”. “s3” is towards Williamsburg. Chinatown could be any of the radios.
Prism2 has one radio facing North. It is very strong in Chinatown
Antenna Alignment
There is a visual level built into the antenna make sure the bubble is in the middle.
There is a “tools” menu in the upper right of the interface. Click this and select Antenna alignment. First align the antenna by pointing it directly at the supernode. Now move it slightly up or down to get a stronger signal. Once you have the vertical alignment, do the same by moving the antenna horizontally. The sound option is very helpful for this.
Download test
To get internet from the CPE you need to set your laptop’s network configuration to IPv4:using DHCP (“automatic” setting on some machines). If the device is paired with the supernode it will automatically get an IP address in our range- 199.x.x.x
A good speed is over 50Mps. We have been getting 60 to 120Mbps so far. If the speed is under 20Mbps explain to the member the limitations (Netflix standard streaming is 5Mbps). It is not good to install if connection is less than 10Mbps as it won’t reliably play video.
You must have a gigabit adapter to get over 100Mbps. It is possible to get 200Mbps if you are close with good line of sight. If you don’t have a gigabit adapter the maximum speed is going to be under 95Mbps.
